2025 Yamaha F200 Tiller

  • 2025 Yamaha F200 Tiller

CURRENT PROMOTIONS

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

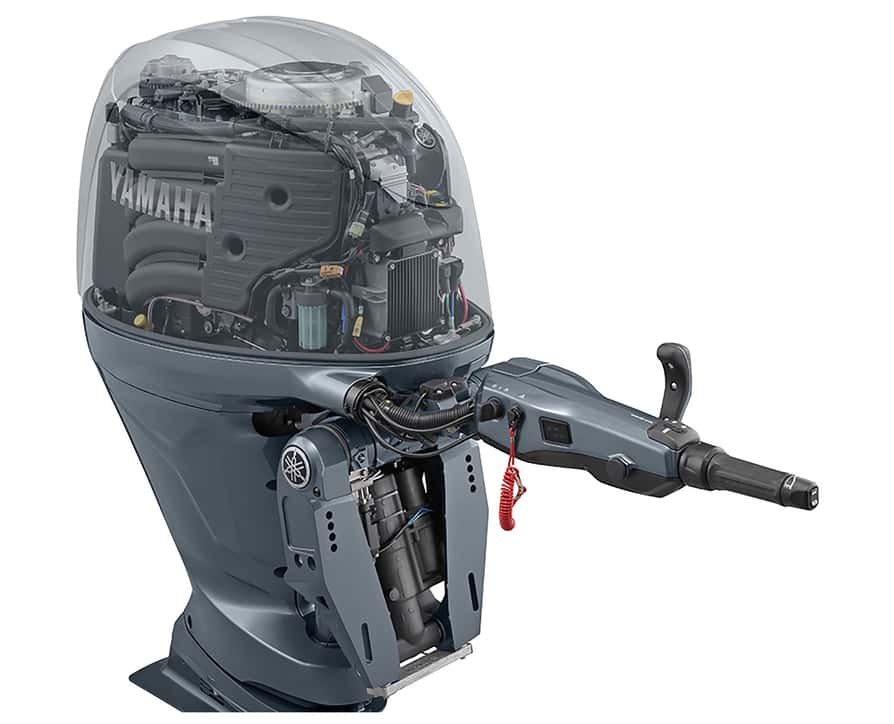

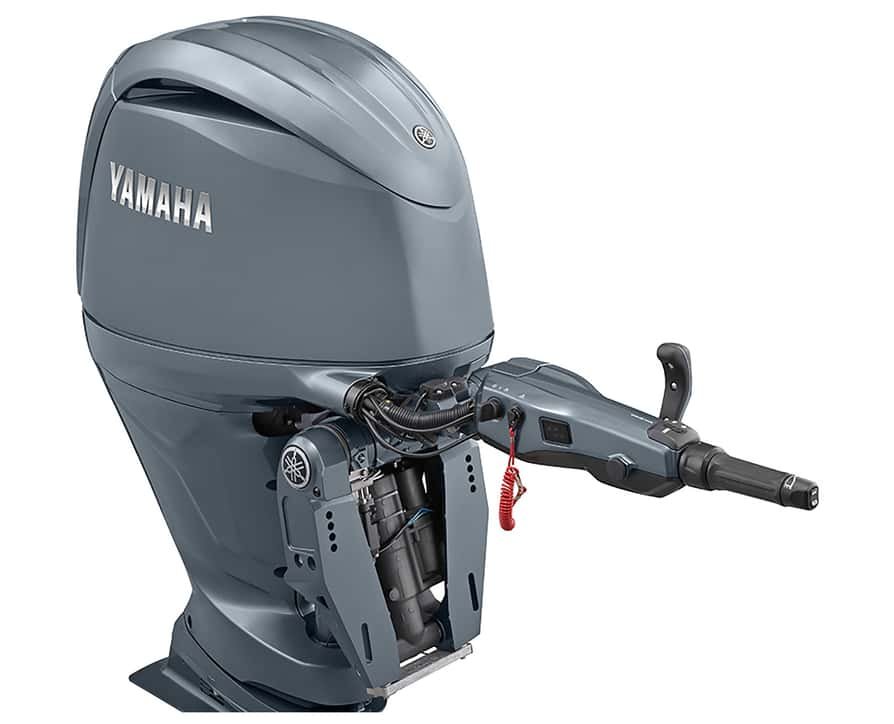

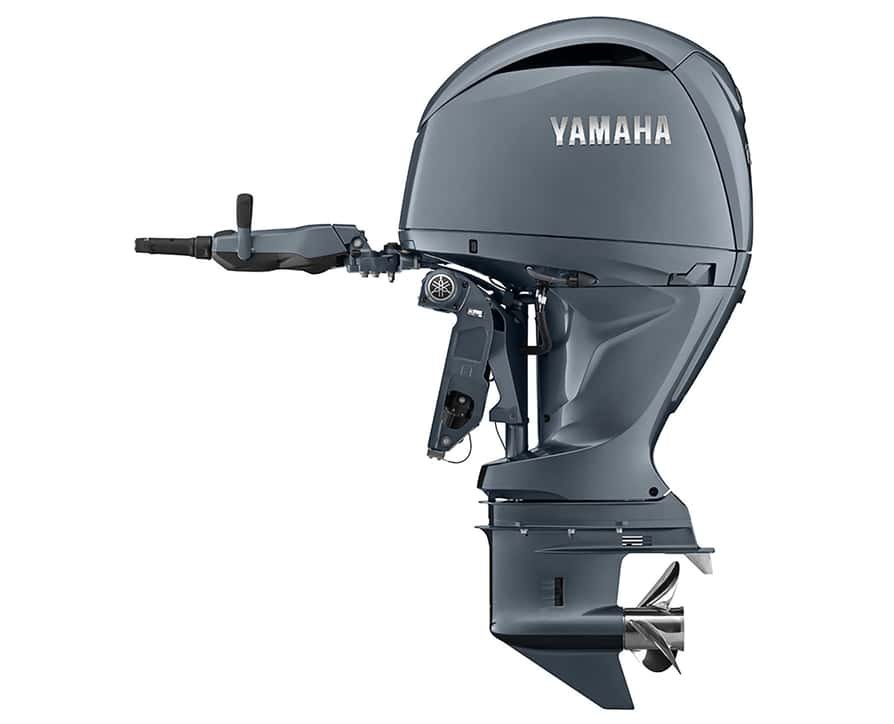

The F200 Tiller has everything you need, all in one. Feauting a multi-function tillwith with integrated engine indicators, variable trolling speed (VTS), power trim & tilt (PTT), shifting, throttle, and power-assisted steering, this all-new F200 Tiller puts full control of your engine at your fingertips—while maximizing space on your vessel.



Specifications
Model
F200 Tiller
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Yamaha
Color
Traditional Grey
engine
Engine Type In-Line Four-Cylinder
Displacement 2785cc (170 ci)
Bore & Stroke 96 x 96.2mm (3.78 x 3.79in)
RPM Range 5,000 - 6,000
Compression Ratio 10.3:1
Induction System EFI (DOHC)
Alternator Output 50 Amps
Fuel Delivery Multi-point electronic fuel injection
Starting Electric w/PTT
Ignition TCI Microcomputer
Lubrication Wet sump
Degree of Trim/Tilt -3° through +16°
Exhaust Through Propeller
Cooling Thermostatic Control
Gear Shift F/N/R
Gear Ratio 26:14 (1.86:1)
dimensions
Shaft Length 20" - 25"
Dry Weight 221kg (487lbs)
highlights

2025 Yamaha F200 TillerSteering Assist Control System

Featuring a tiller handle with steering assist function developed based on the integrated electro-hydraulic steering system of the 2.8L model. This allows the driver to experience a premium steering feel with a light steering load.

2025 Yamaha F200 TillerReversable Shift lever

The shift lever, which is on the port side in the shipped condition, can be replaced on the starboard side. The shift lever can be removed by removing the cover and loosening the fixing bolt. By installing it on the starboard side in the reverse order, the shift can be operated on the starboard side.

2025 Yamaha F200 TillerHandle angle adjustment

The handle angle can be adjusted by up to 15° in 5° increments for both starboard and port.
fuel and lubrication
Recommended Fuel Unleaded Gasoline (Minimum Pump Octane 89)
Recommended Oil Yamalube 4-M
Oil Capacity 4.5L/4.3L w/without filter
features and benefits

Key Features

  • Lightweight & compact
  • Acceleration: Like its Yamaha V6 Offshore siblings, the four-cylinder F200 is equipped with Yamaha's (VCT) Variable Camshaft Timing System, which helps the outboard deliver quick acceleration and a strong midrange punch.
  • Powerful: The 2.8-litre, 16-valve DOHC powerhead breathes easy and responds quickly. Its valve train design is sophisticated, yet proven by millions of hours of use. The F200 has the most favourable power-to-weight ratio of any four-stroke 200-hp outboard.
  • Steering Assist Control System: Tiller handle with integrated controls for a helm free experience

LightWeight & Compact

The F200 is the lightest 200-hp four stroke available. It is up to 119 lbs lighter than Yamaha's V6 F200. It weighs just 14 pounds more than Yamaha's two-stroke 200 HPDI outboard.

Acceleration

Like its Yamaha V6 Offshore siblings, the four-cylinder F200 is equipped with Yamaha's (VCT) Variable Camshaft Timing System, which helps the outboard deliver quick acceleration and a strong midrange punch.

Powerful

The 2.8-litre, 16-valve DOHC powerhead breathes easy and responds quickly. Its valve train design is sophisticated, yet proven by millions of hours of use. The F200 has the most favourable power-to-weight ratio of any four-stroke 200-hp outboard.

Efficiency

It's normally aspirated for less complexity and better fuel economy. Some competitor's outboards require 92 octane fuel to develop 200 hp. The F200 runs best on 89 octane.

Versatile

The F200 is now available with either digital electronic control in both 20- and 25-inch shaft. That means, the F200 is just right for so many different kinds of boats: centre consoles, pontoons, sport boats, bay and flats boats, deep V aluminum, and fish & ski, just to name a few.

Better Charging

A powerful 50-amp alternator offers a 13 percent increase in charging power compared to Yamaha's V6 F200.

Better Fishing

The F200 has popular features such as Yamaha's Variable Trolling RPM Switch (VTS®).

Control

Models are available with either digital electronic control or mechanical control. Models with digital electronic control are compatible with Yamaha Command Link Plus®, rigging system and hardware for the utmost in control. All F200 models can be rigged to external NME A 2000® compatible displays or analog gauges using a gateway device. Both versions of the outboard are Y-COP® compatible.

Quiet

Yamaha's SDSTM (Shift Dampener System) propeller hardware comes standard with the F200 for smoother, quieter, no clunk shifting. In addition, the outboard employs counterbalance shafts for vibration-free, quite running.

Yamaha Reliability

Based on proven Yamaha four-stroke, marine-specific architecture and years of solid performance.
