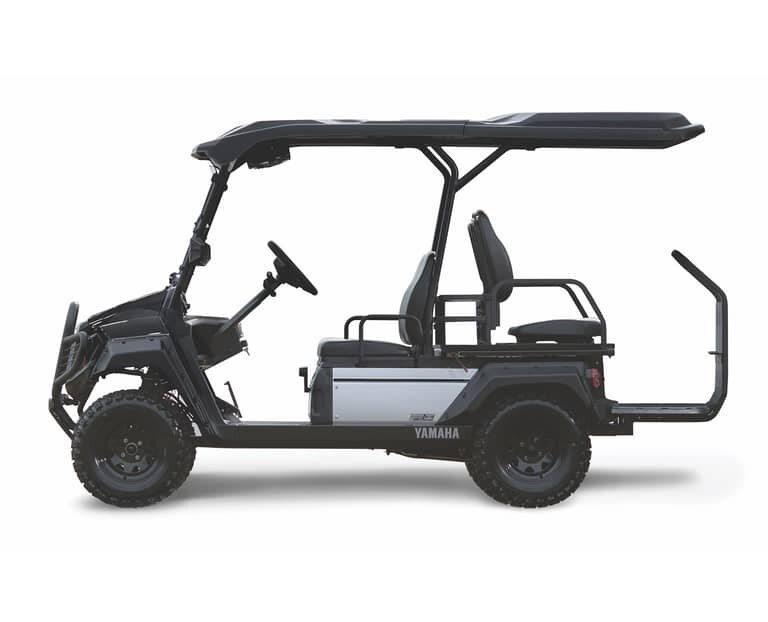

Yamaha UMAX Rally 2+2 Onyx Metallic

  • Yamaha UMAX Rally 2+2 Onyx Metallic
  • Yamaha UMAX Rally 2+2 Onyx Metallic
  • Yamaha UMAX Rally 2+2 Onyx Metallic
  • Yamaha UMAX Rally 2+2 Onyx Metallic
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The UMAX Rally 2+2 gives you more room for your crew with two additional rear-facing, convertible seat. These seats can be folded down to allow 200 lbs (90 kg) of added storage capacity as well as a rear basket between the front and rear seats for added flexibility.
Specifications
Model
Rally
Category Name
Personal Transportation Vehicles
Year
2025
Sale Type
New
Manufacturer
Yamaha
Color
Onyx Metallic
engine
Engine Yamaha-built 402 cc, Low Emission Single Cylinder 60° Incline OHV
FUEL SYSTEM Electronic fuel injection
STARTING SYSTEM Starter generator with pedal start system
AIR CLEANER Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
chassis
Suspension (Front) Tru-Trak II™ fully independent automotive-style strut suspension
Suspension (Rear) Unit swing arm with dual rate coil springs over hydraulic shock absorbers
BRAKES Mechanical, 4-wheel drum
TIRE SIZE 23x10.5-12 4-ply Monitor K389 (front) K500 (rear)
highlights

Yamaha UMAX Rally 2+2 Onyx MetallicRear Facing Folding Seats

Bring everyone along with premium rear facing bucket seats or tackle your to-do list with 200 lb of added storage capacity when the seats are folded down.

Yamaha UMAX Rally 2+2 Onyx MetallicRear Storage Basket

Added storage between the front and rear seats to carry tools, equipment, groceries or whatever else you need to take along.

Yamaha UMAX Rally 2+2 Onyx MetallicAutomotive-Style Dash

A dash designed for today’s professional, complete with cup holders, and fuel/battery gauge.

Yamaha UMAX Rally 2+2 Onyx MetallicSide-fill gas tank

A convenient side-fill gas tank makes for a quick, efficient fill up.

Yamaha UMAX Rally 2+2 Onyx MetallicUnder-hood storage compartment

Sizable storage area designed for convenience.
critical data
Length 3415 mm (134.4")
Width 1360 mm (53.5")
Height 1,925 mm (75.8")
Wheelbase 1965 mm (77.4")
Turning radius 4000 mm (4.0 m)
Ground Clearance 150 mm ( 5.9")
Fuel Capacity 20 Litres (5.2 US Gal)
Weight Curb Weight 610 kg (1345 lb)
WARRANTY Standard 2-year limited vehicle warranty
Colour(s) Onyx Metallic / Carbon Metallic / Glacier
features and benefits

KEY FEATURES

  • 402 cc, low-emission single cylinder 60° incline OHV
  • Independent front suspension with cradle-smooth rear suspension
  • Convertible, fold-down rear facing bucket seats adds 2 extra seats or 200 lbs of added storage capacity.
  • Rear storage basket between front and rear seats
  • Clear polycarbonate fold-down windshield
  • Under hood storage compartment
  • Capable 23” tires
  • Front brush guard and fender flares

ENGINE

  • ENGINE TYPE.
    • Yamaha-built 402 cc, Low Emission Single Cylinder 60° Incline OHV
  • OIL CAPACITY.
    • 1.1 L, 1100 cc (1.16 U.S. quart), Yamalube 10W-30
  • AIR CLEANER.
    • Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
  • COOLING SYSTEM.
    • Forced air
  • FUEL SYSTEM.
    • Electronic fuel injection
  • STARTING SYSTEM.
    • Starter generator with pedal start system
  • FUEL TANK CAPACITY.
    • 20 Litres (5.2 US Gal)

Chassis

  • FRAME.
    • HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame
  • BODY.
    • Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade
      polyurethane
  • STEERING.
    • Self-compensating double reduction helical rack-and-pinion
  • FRONT SUSPENSION.
    • Tru-Trak II™ fully independent automotive-style
  • REAR SUSPENSION.
    • Unit swing arm with dual rate coil springs over hydraulic shock absorbers
  • BRAKES.
    • Mechanical, 4-wheel drum
